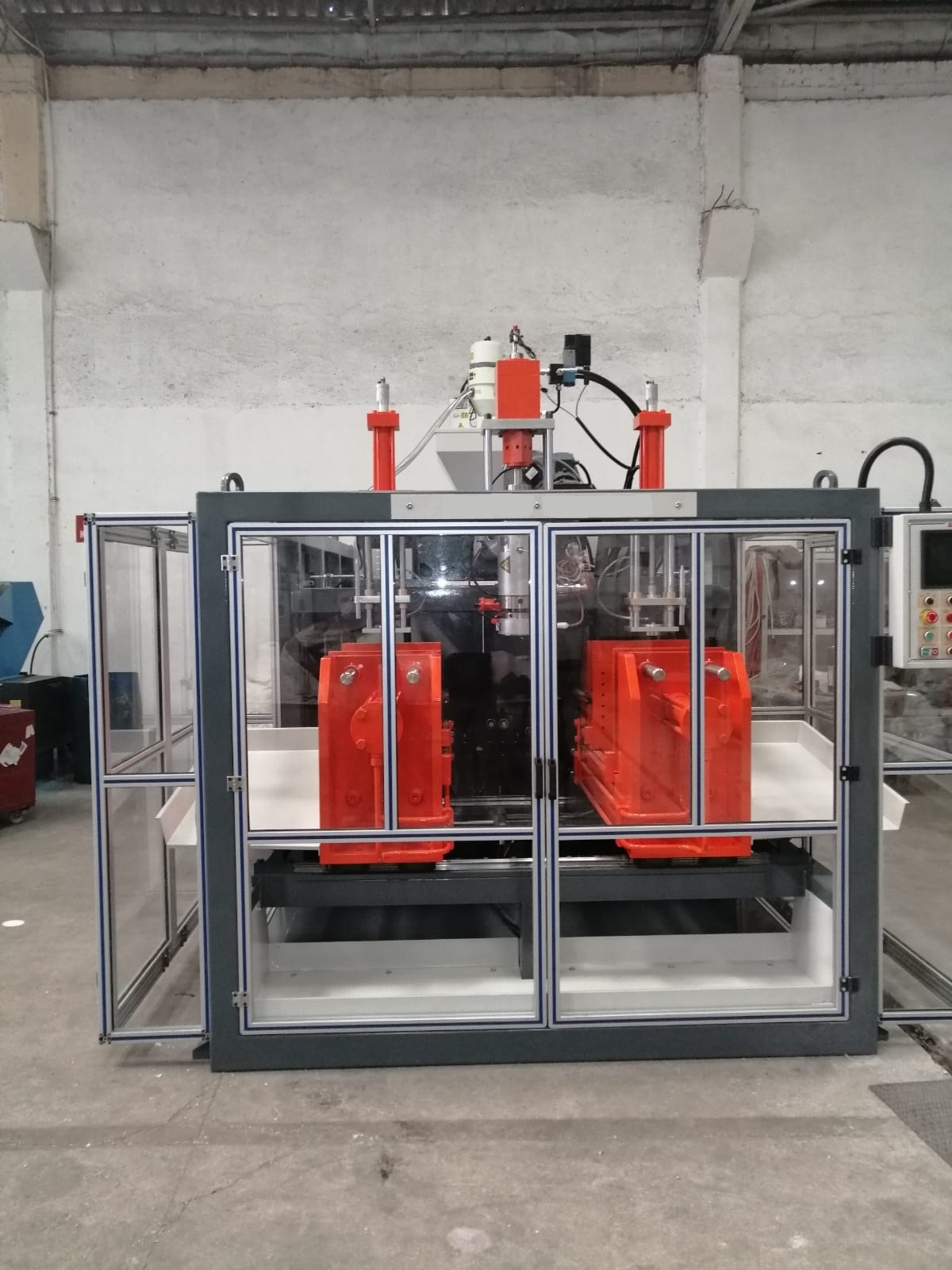

EXTRUSION MACHINE

Specifications

Bottle Type: PE Bottle

Capacity: 600 bph for 1L
(According to the demand, the machine design is revised according to the required capacity.)


GENERAL TECHNICAL SPECIFICATIONS
Plate Dimensions450 mm x 500 mm
Plate Expansion Distance450 mm
Extruder Shaft-Case DimensionØ100 mm
Extruder Shaft-Case Raw Material4140 Alloyed Steel
Extruder Power Supply30 kW – 1400 rpm, 37 kW AC Speed Control
Bottle Range0,50 lt – 1 lt
Hydraulic Equipment22kW – 25Galoon – (VICKERS)
Electrical-Electronic EquipmentTouch Screen PLC Control (SIEMENS)
Heat Control SystemMax. 8 Zones
Electricity Consumption Power80kW
Transmission System15/1
Hydraulic System125s Proportional Valve
Clamp Forward-Backward MovementServo Valve
Parozyon Control200 Points
Raw Material LoaderAvailable
Overflowing Product ConveyorAvailable
